Dry eye fluoresceins and acinar-meibography

The EyePhotoDoc’s LED exciter and barrier filter show more detail

A photograph is more descriptive than words. A video shows tear dynamics. Scientific explanation below

Subtle punctate changes maybe missed
Subtle punctate changes maybe missed

Most significant way to help your dry eye patients

Office tests for dry eye diagnosis have many non-conclusive tests.  Unfortunately they are only suggestive such as the Schrimer test, TBUT, tear osmolarity, but are not diagnostic. Our advanced fluorescent Diode and yellow barrier filter find subtle punctate changes.  Punctate stain is the only objective test for dry eye. It also tells the degree and severity that corresponds to patient’s complaints.

Photos help in patient follow up

Evidenced based dry eye treatment
Evidenced based dry eye treatment

This patient was treated for dry eyes. The left represents the original findings while the right shows the improvement a month later. Note the change in punctuate stain and the reestablishment of the tear film.

Below is an important new development. Watch the video of the blink and tear film dynamics. Note the tear film coating, it’s spread and breakup. This is called dynamic tear film analysis.


How this works: Yellow Barrier filter

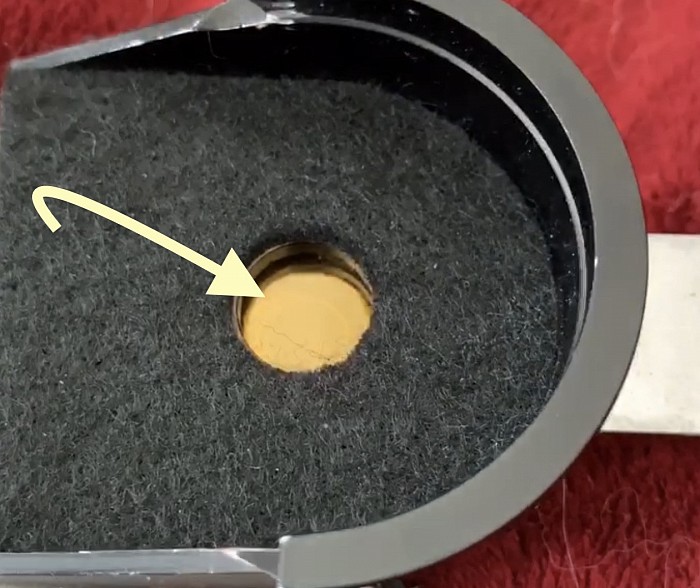

Slide in Gel filter
Slide in Gel filter
The filter slides in and out. This permits external photos and quickly converts to yellow Wratten type filter

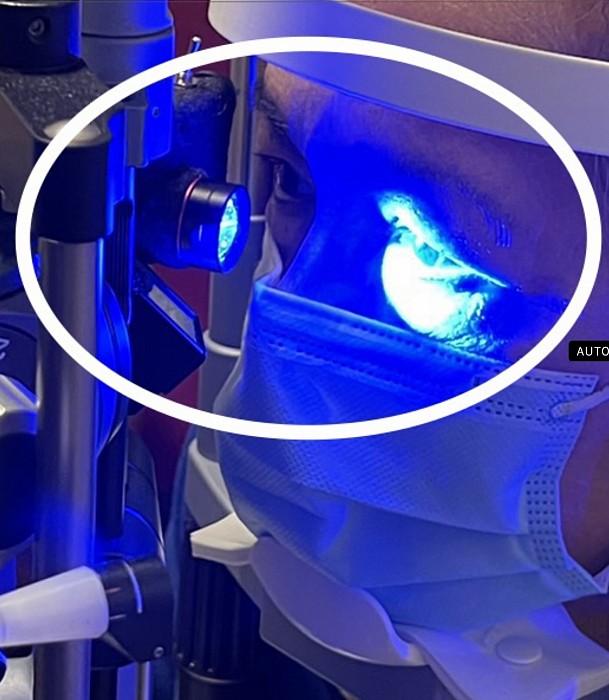

Full field fluorescein LED exciter
Full field fluorescein LED exciter

Brighter and wider fluorescent diode beam

The special fluorescein exciting LED light is designed especially for diagnosis of external ocular tear film abnormalities. Unlike the typical slit lamp 10 mm blue light it is more intense and has a greater field. It allows you to see the lid action, tear film spread and breakup like never before.

Highly Recommended if your slit lamp does not have a yellow filter

Why this works better:

The standard slit lamp blue light washes out the fluorescent green  detail.  By using a yellow barrier filter the blue color is blocked  and only the fluorescent detail is seen. The tear film and ocular surface disorders are easily seen. Click here for more videos

 The legacy ‘tear break up time’ can be videoed for more understanding of the tear film behavior. The images can be used to show the patient and evaluated the efficacy of treatment.

The technology is ideal to evaluate different treatments. The before and after images help you decide on the type of drops, value of Restasis™️ and other meds in the category, punctal plugs, serum drops, meibomian treatments, etc


Now  Acinar-Meibography  for diagnosis and treatment of oil layer deficiencies

Photo acinar-meibography
Photo acinar-meibography

The meibomian glands are sufficiently close to the surface allowing them to  be photographed. By using the monochrome feature on your editing program the glands detail can be seen. Contact us for more information

Photographic acinar-meibography with monochromatic and inverse filters

New meibography techniques
New meibography techniques

Our newest advancement is green light acinar-meibography. Green is red free so it filters the red of the conjunctiva to visualize the acinar structures.  You can use it on every dry eye patient without slowing down your work flow

By using  your camera you get higher resolution as  compared too IR meibography cameras.  Above is a green photo, middle a monochromatic photo used to accentuate the glands, and below an inverse demonstrating loss of vessels in dying glands.

Treat and follow acinar-meibomian disease

By using filter apps you can see the details of the glands allowing you to see the acinar spaces, obstructing particles and the vascularture.

Clinically it allows you to treat meibomian disease earlier than IR Meibography. With a camera you can follow the progress of treatment.

For more information click here

See more informative videos
